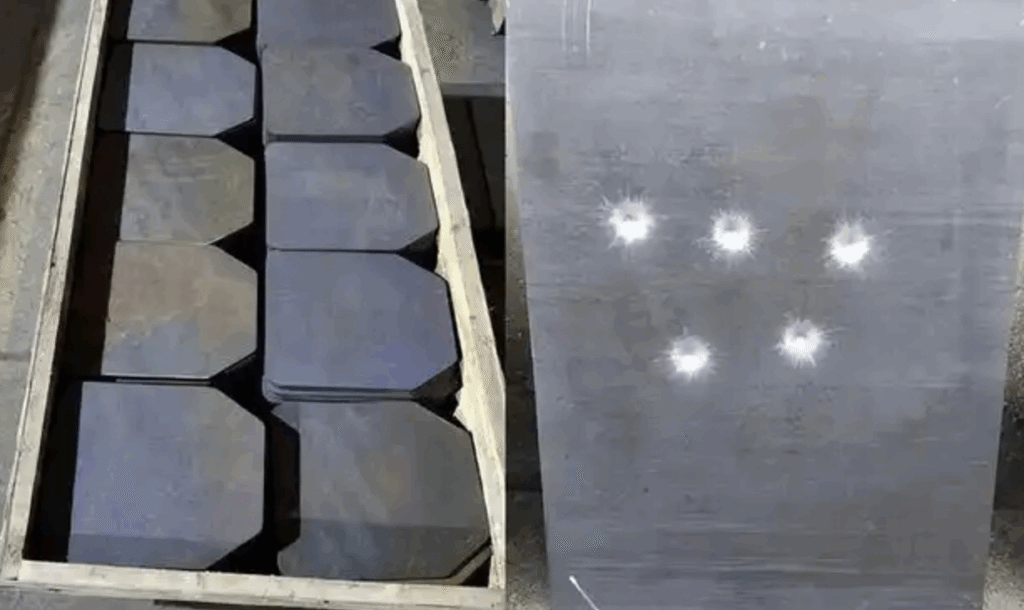

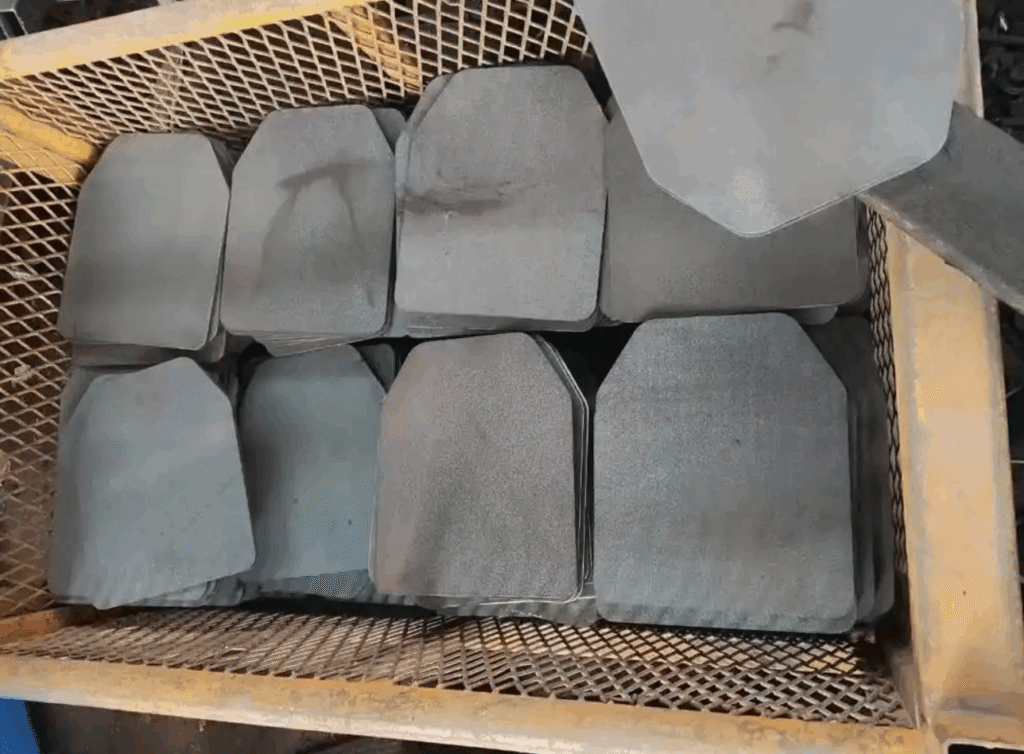

Bulletproof steel plate, also known as ballistic armor steel plate, is a high‑hardness alloy steel processed through specialized quenching and tempering heat treatment. It dissipates bullet kinetic energy by leveraging its material hardness and toughness, providing ballistic protection. It is widely used in armored vehicles, safe rooms, ballistic shields and security‑engineering projects. Many procurement personnel mistakenly treat ordinary wear‑resistant steel plates as bulletproof steel plates. It should be clearly noted that ordinary AR500 wear‑resistant steel only delivers wear resistance. Without ballistic certification, it cannot be directly deployed for ballistic protection. This article systematically covers protection mechanisms, mainstream grades, ballistic standards, processing techniques and procurement guidelines for bulletproof steel plates, helping engineering, procurement and technical specialists complete project selection efficiently.
How Bulletproof Steel Plate Provides Ballistic Protection
Bulletproof steel plates resist bullet impacts through alloy formulation plus quenching‑and‑tempering heat treatment to achieve balanced high hardness and toughness. When a projectile strikes the plate surface, the high‑hardness surface layer blunts, squeezes and fragments the bullet, while the steel substrate absorbs and disperses impact kinetic energy to stop penetration.
High‑hardness bulletproof steel plates carry one critical risk: spall effect. Upon bullet impact, fine metal fragments may eject from the rear non‑impact side of the plate. Even if the bullet fails to penetrate, these flying fragments can still cause secondary injuries. In industrial practice, anti‑spall coatings are commonly applied to restrain fragment ejection and mitigate this safety hazard.
Ordinary carbon steel and conventional wear‑resistant steel lack ballistic‑grade heat treatment. Their hardness‑toughness balance cannot meet anti‑ballistic requirements. Even increased thickness may result in penetration or massive spalling, making them unsuitable for ballistic‑protection projects.
Mainstream Grades & Specifications of Bulletproof Steel Plate
Globally available bulletproof steel grades fall into internationally recognized armor‑steel series and domestic ballistic‑armor‑steel series. Grades differ notably in Brinell hardness, available thickness range and applicable protection levels.
- AR450 / AR500 / AR550 Widely circulated on the market with Brinell hardness ranging from 450‑550 HB. Important reminder: Most commercial AR500 products are wear‑resistant plates. Wear‑resistant AR500 is not equivalent to ballistic‑certified bulletproof steel plate. Only batches validated by ballistic testing can serve ballistic‑protection purposes. Uncertified AR500 is mostly used for shooting‑range targets instead of armor applications.
- Armox® 500, Armox® 550 (SSAB) Mature armor steel manufactured by Sweden‑based SSAB, supplied in quenched condition with stable hardness and complete ballistic‑test datasets. Frequently adopted for armored vehicles and high‑end security projects, with thickness ranging from 2 mm to 30 mm. It is a widely‑specified grade for international projects.
- Ramor® 500, Ramor® 550 (SSAB) Another SSAB protection‑steel product balancing ballistic performance and moderate workability. Suited for civilian ballistic walls and protective enclosures, mainly available in 3‑15 mm thickness.
- Domestic BP / FD‑Series Ballistic Steel Plates Ballistic‑specific armor steel produced by domestic steel mills, compliant with both local and international ballistic standards. It delivers competitive cost‑performance for domestic security and special‑equipment projects.
| Grade | Brinell Hardness | Typical Application Scenarios |
|---|---|---|
| AR500 (Ballistic‑Certified) | 470‑530 HB | Shooting‑range targets, mid‑level static protection |
| AR550 (Ballistic‑Certified) | 520‑570 HB | Rifle‑grade ballistic protection |
| Armox 500 | 480‑540 HB | Armored vehicles, security‑engineering projects |
| Ramor 550 | 530‑580 HB | Building ballistic walls, protective enclosures |
Note: Grade only reflects fundamental material attributes. Ballistic performance shall be judged solely on third‑party ballistic test reports rather than grade designation alone.
Ballistic Standards & Thickness‑Selection Guidelines
Two dominant international ballistic standards are widely referenced: the US NIJ 0101.07 ballistic‑resistance standard and NATO STANAG 4569 for armored‑vehicle protection. The European civilian standard EN 1522 is also frequently cited.
Core Protection Levels under NIJ 0101.07
‑ RF1 (Former Level III): Defends against 5.56×45 and 7.62×51 M80 ball ammunition;
‑ RF2 (Former Level III+): Defends against select enhanced rifle rounds;
‑ RF3 (Former Level IV): Defends against armor‑piercing projectiles. Steel plates can hardly achieve RF3 independently; steel‑ceramic composite solutions are mostly adopted.
STANAG 4569
Military‑vehicle protection standard classified into Level 1‑4 corresponding to different ballistic threats, widely used for armored personnel carriers and special vehicles.
Thickness reference note: Given identical ammunition, steel grade, impact angle and ambient temperature alter ballistic performance. The table below serves for engineering reference only. Third‑party ballistic‑test reports shall govern acceptance for real‑world projects.
| Threat Ammunition | Reference Plate Thickness (Armox 500) | Reference Standard |
|---|---|---|
| 5.56×45 SS109 | 6.5 mm | NIJ RF1 |
| 7.62×39 M43 | 4.25 mm | EN 1522 VPAM 6 |
| 7.62×51 M80 NATO Ball | 6.5 mm | NIJ RF1 |
| 7.62×51 NATO AP | 12 mm and above | STANAG 4569 |
Advantages & Disadvantages of Bulletproof Steel Plate
✅ Advantages
- Excellent multi‑hit performance: When not penetrated, bulletproof steel largely retains protective capacity after multiple bullet impacts, outperforming ceramic plates under repeated fire.
- Strong environmental adaptability: Resists humidity, extreme temperatures and rough handling with long service life and minimal maintenance costs.
- Stable supply and favorable overall cost: Lower unit ton‑price versus ceramic ballistic materials, ideal for large‑area static‑protection projects.
❌ Disadvantages
- High areal weight: Significantly heavier than ceramic or UHMW‑PE plates at equivalent protection levels, making it unsuitable for body‑worn armor.
- Intrinsic spall risk: Anti‑spall coating is mandatory to prevent secondary injuries caused by ejected fragments.
- Limited workability for high‑hardness armor steel: Welding and bending modify hardness within heat‑affected zones and may degrade ballistic performance if improperly handled.
- Pure steel rarely defeats armor‑piercing rounds: Composite structures incorporating ceramics are required for high‑level AP‑resistance.
Bulletproof Steel Plate vs Ceramic Ballistic Plate
Many purchasers face material‑selection dilemmas. Neither material is universally superior; suitability depends on project requirements.
| Comparison Item | Bulletproof Steel Plate | Ceramic Ballistic Plate |
|---|---|---|
| Weight | Heavy at equal protection level | Lighter; 30‑40 % weight reduction |
| Multi‑hit Capacity | Excellent, tolerates multiple shots | Vulnerable after impact; impacted sections require replacement |
| Armor‑Piercing Resistance | Conventional grades struggle against AP rounds | Superior performance against armor‑piercing ammunition |
| Durability | Impact‑resistant, long service life | Fragile against drops and impacts; strict storage‑transport requirements |
| Cost | Cost‑effective for large‑scale deployments | Higher material cost |
| Fragment Hazard | Spall risk exists; anti‑spall coating required | No metallic spall yet ceramic debris may form upon fracture |
Selection Recommendations:
‑ Prioritize bulletproof steel plate: Armored‑vehicle hulls, building ballistic walls, safe rooms, shooting ranges, static fixed‑protection applications, budget‑constrained projects and scenarios expecting repeated impacts.
‑ Prioritize ceramic plates: Body‑worn personal armor, weight‑sensitive mobile platforms and scenarios requiring armor‑piercing‑round protection.
Typical Application Scenarios for Bulletproof Steel Plate

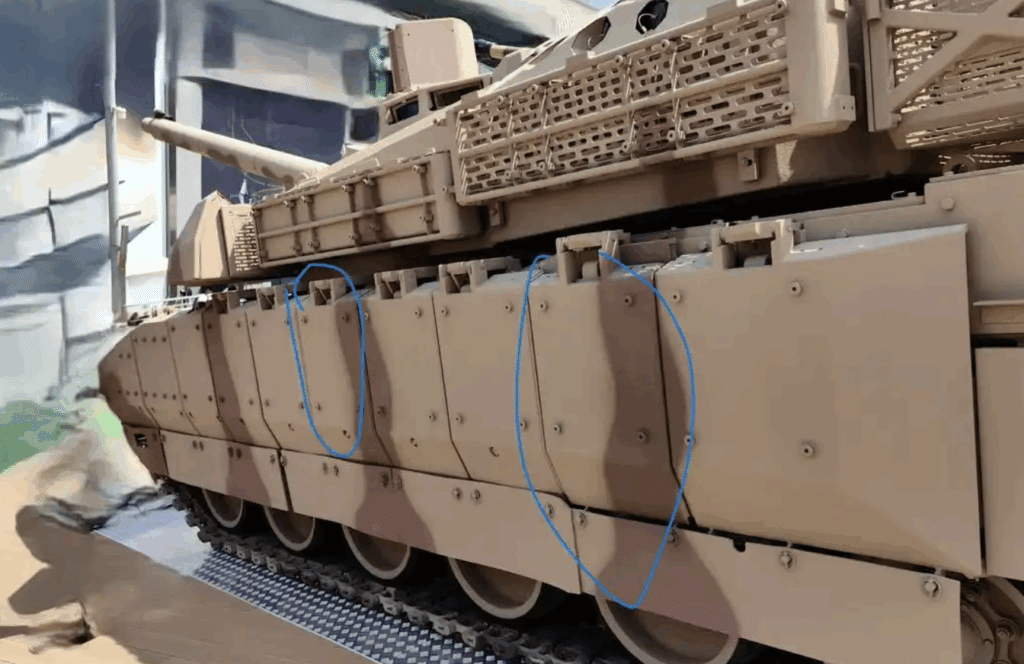

- Armored‑vehicle manufacturing: Hulls for personnel carriers, cash‑in‑transit vehicles and special anti‑riot vehicles, representing the largest armor‑steel application.
- Building‑security engineering: Safe rooms, ballistic walls, bank facilities, control rooms and police sentry‑booth protection.
- Ballistic shields: Base material for police‑ and security‑service handheld ballistic shields.
- Shooting‑range infrastructure: Note: Most shooting‑range targets use wear‑resistant AR500 rather than ballistic‑grade bulletproof steel plates; the two serve distinct purposes.
- Military and security‑equipment components: Fixed protective enclosures and anti‑explosion equipment housings.
Processing Guidelines for Bulletproof Steel Plate: Cutting, Welding and Bending
Bulletproof steel is quenched high‑hardness steel. Thermal processing alters local metallurgical structures and softens heat‑affected zones, directly impairing ballistic performance. Processing procedures must be strictly controlled.
- Cutting Operations Waterjet cutting is preferred. Plasma and laser cutting are acceptable, yet thermal cutting creates a 2‑5 mm softened heat‑affected zone. Keep critical ballistic zones clear of cutting edges. Flame cutting should be minimized. Pre‑heating is recommended for thick‑plate flame cutting to mitigate edge cracking.
- Welding Practices Welding of high‑hardness bulletproof steel plates is not recommended. If welding is unavoidable for structural assembly, use low‑hydrogen consumables, strictly control heat input, implement pre‑heating, manage inter‑pass temperature and ensure slow post‑weld cooling. Weld seams and adjacent heat‑affected zones lose ballistic capability. Welds shall serve structural connection purposes only and must not be located within threat‑facing zones.
- Bending & Forming Most high‑grade bulletproof steel plates cannot be bent. Quenched armor steel readily cracks under cold bending. Consult steel‑mill specifications in advance if forming is required. On‑site unauthorized cold bending is prohibited.
- Surface Treatment Blast cleaning and rust removal are allowed on ballistic surfaces. Anti‑spall coating is recommended for the rear face to suppress fragment ejection.
Procurement & Selection Guide for Bulletproof Steel Plate
Do not base purchasing decisions solely on grade or price. Follow the workflow below to avoid common pitfalls.
- Define ballistic‑threat requirements: Clarify target ammunition types, firing distances and corresponding standards (NIJ, STANAG or EN 1522).
- Request ballistic‑test reports: Material certificates alone cannot validate ballistic performance. Third‑party ballistic‑test reports are mandatory. Reject suppliers claiming ballistic capability providing only mill test reports.
- Confirm plate parameters: Specify thickness, dimensional tolerances, anti‑spall‑coating requirements and expected cutting/welding scope.
- Clarify commercial terms: Verify mill test certificates, minimum order quantity, lead‑time, ton‑price and packaging‑transport arrangements.
- Critical warning: Never deploy ordinary wear‑resistant AR500 as ballistic steel. Wear‑resistant plates lack ballistic qualification and create severe safety risks for protection‑oriented projects.
Frequently Asked Questions
Q1: What steel material is used for bulletproof steel plates?
Mainly quenched‑and‑tempered high‑hardness alloy armor steel, including Armox, Ramor, ballistic‑certified AR500/AR550 and domestic BP/FD series. Ordinary wear‑resistant steel is not ballistic‑grade.
Q2: What plate thickness stops 7.62 NATO ammunition?
For Armox 500, the engineering reference thickness is approximately 6.5 mm. Actual thickness varies with steel grade, impact angle and test conditions. Third‑party ballistic‑test reports govern real‑world projects.
Q3: Is AR500 steel inherently bulletproof?
No. Most commercial AR500 is wear‑resistant steel for abrasion‑resistant service or shooting‑range targets. Only AR500 validated by complete third‑party ballistic testing qualifies as bulletproof steel plate.
Q4: Can bulletproof steel plate be welded?
Structural welding is feasible, yet weld seams and surrounding heat‑affected zones lose ballistic performance. Welds must never appear within threat‑exposed zones. Avoid welding unless absolutely necessary.
Q5: What is the spall effect for bulletproof steel plates?
When a bullet strikes steel, fine metallic fragments eject from the rear face even without full penetration, creating secondary injury hazards. Professional anti‑spall coatings effectively mitigate this phenomenon.
Q6: Which is better, bulletproof steel plate or ceramic ballistic plate?
Neither material holds universal superiority. Steel delivers robustness and cost‑efficiency for large‑scale static‑protection deployments. Ceramic offers weight‑saving advantages for personal armor but is impact‑sensitive and loses efficacy after single ballistic hits.
Conclusion
Bulletproof steel plate represents a cost‑effective ballistic‑protection solution for static‑protection and armored‑vehicle projects. Proper selection depends on threat‑level matching and validated third‑party ballistic‑test reports rather than material grade alone. Grades such as AR500, Armox and Ramor each have defined application boundaries. Procurement teams must strictly distinguish wear‑resistant plates from ballistic‑certified bulletproof steel. The spall hazard deserves full attention alongside well‑defined cutting‑and‑welding workflows. Select steel‑or‑ceramic solutions according to project‑specific conditions. If custom bulletproof steel plates are required for your project, request complete material datasheets and ballistic‑test reports for preliminary technical evaluation.
Reference Documents
- SSAB Ramor Protection Steels Product Datasheet: Technical parameters and thickness‑selection references for Ramor 500/550
- SSAB Armox Armor‑Steel Official Technical Manual: Heat‑treatment, cutting and welding guidelines
- NIJ 0101.07‑2020, Ballistic Resistance of Body Armor: US ballistic‑protection standard
